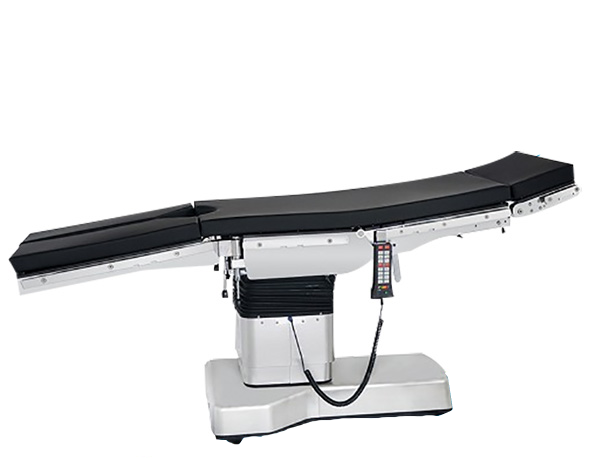

Electric Operation Table

It is a cost-effective, multi-performance mobile operating table that meets the requirements of different surgeons, the clinical staff can easily operate the table quickly and effectively, even in a darkened operating theater.

The large loading capacity accommodates patients of different sizes.

Features

• Imported hydraulic motor and solenoid valve
• It has the function of auto-restoration
• Electro-hydraulic mode of operation is adopted. Panel control modes are available to control various movements
• Quality stainless steel 304 is used for table support, bae plate, column shield and rails on both sides of the table, easy for cleaning and sterilization, Console supports the use of cast aluminium parts, never rust
• The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam
• Imported carbon steel plate is used for the table top, which is convenient for X-ray photography
• AC and DC can use at the same time
• The table top can slide
• Electric braking device, convenient for shifting the operating table

Standard Accessories

• A pair of shoulder support frame, a pair of waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame, a pair of pedal foot board, a waistband
• Length: 2000±100mm
• Width: 520±20mm
• Height: (750-1150)±30mm
• Forward: ≥20° Backward: ≥25°
• Leftward: ≥18° Rightward: ≥18°
• Horizontal and longitudinal movement: 300±30mm
• Leg board fold upward/downward: 15°/90°
• Leg board fold outward: ≥180°
• Back board fold upward: ≥70° fold downward: ≥20°
• Head board fold upward: ≥50° fold downward: ≥90°
• Waist board lifting: 100±20mm
